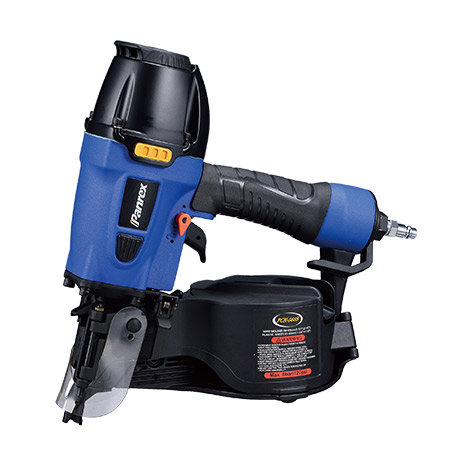

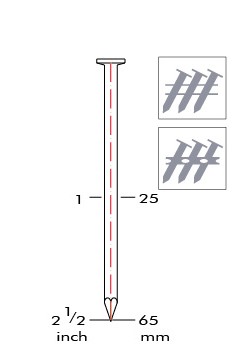

Advanced Search Application Pallet / crates Construction Framing Roofing/Siding Flooring Finishing Work Furniture/Upholstery Cage/mattress/bag closure/Car Seat Concrete Drywall Special Using Auto-Machine Fasteners Length MAX. 1''-2'' MAX. 2''- 3'' MAX. 3''- 4'' MAX. 4''- 5'' MAX. 5''- 6'' MAX. 6''-7'' MAX. 7''- 8'' MAX. 8''- 9'' Collation Angle 0° 15° 17° 21° 26° 34° Shank MAX. 0''-.010'' MAX. 010''- .050'' MAX. 050'' -.100'' MAX. 100''-.150'' MAX. 150'' -.200'' MAX. 200''-.300'' Gauge Size 14 GA. 15GA 16GA 17GA 18GA 21GA 22 GA. 23GA 10 1/2 GA 15 1/2 GA SEARCH PCN-565H Inquiry Prev Next Back Product Specification Type of Nail Wire Welded Nails and Plastic Sheet Nails Shank .092˝-.113˝(2.30-2.87mm) Head Dia MAX .275˝(7.0mm) Collation Angle 15° Weight 5.54 lbs(2.52kg) Load Capacity 250-400 Nails Operating Pressure 70-120psi(4.9-8.3kg/cm²) Fasteners Length 1˝-2 1/2˝(25-65mm) Pitch 8.0mm Out of stock., contact us HomeProductsConstruction Coil NailersPCN-565H
